Radiovibrations - Offset DX
981 KHz
waterfall diagrams received in Handewitt, Germany on 06/03/2017 , 07/03/2017
by Peer-Axel Kroeske, DL2LBP
| KHz | +/- Hz | times | visible | strength | station | remarks
|
|---|
| 980.9847 | 0.2 | | 14-00 | - | |
|
| 980.985 | 1 | -19 | 1630- | + | Egypt? |
|
| 980.9906 | 0 | -1615 | 15- | -- | | far east
|
| 980.9928 | 0 | -1610 | 15- | - | | far east
|
| 980.9933 | 0.1 | 24h | 17-09 | + | Radio Sim, POR, 3 KW | unclean
|
| 980.9964 | 0.1 | 24h | 17-20 | - | Australia? |
|
| 980.9978 | 0 | 24h | 15-08 | + | Algeria Ch2 200 KW |
|
| 980.9979 | 0 | | 15-16 | - | | far east
|
| 980.9981 | 0 | 2120- | -23 | - | |
|
| 980.9988 | 0 | | 15-23 | - | |
|
| 980.9992 | 0 | 2020-1805 | 15-03 | - | |
|
| 980.9994 | 0 | | 15-18 | - | | cluster?
|
| 980.9996 | 0 | | 15-18 | - | | cluster?
|
| 980.9997 | 0.2 | | 14-23 | o | | strong far east
|
| 980.9998 | 0 | | 15-18 | - | | cluster?
|
| 981.0000 | 0 | 24h | 24h | ++ | RAI Trst 10 KW |
|
| 981.0001 | 0.05 | 0520-20 | | + | Radio Impuls M.Budejovice 5 KW |
|
| 981.0001 | 0 | | -00 | - | | fade out shows that it is a second station on .0001
|
| 981.0002 | 0 | | -0450 | - | |
|
| 981.0004 | 0 | | 16-22 | - | |
|
| 981.0006 | 0 | | 16-23 | - | | cluster?
|
| 981.0007 | 0 | | 16-23 | - | | cluster?
|
| 981.0009 | 0 | | 16-19 | - | |
|
| 981.001 | 1 | 24h | 24h | ++ | Radio Impuls Praha 10 KW | zigzag 12min
|
| 981.0011 | 0 | | 18-23 | -- | |
|
| 981.002 | 1 | | 15-05 | o | |
|
| 981.0027 | 0.1 | | 14-23 | - | |
|
| 981.003 | 3 | -1805 | 15- | - | | massive drifter
|
| 981.0079 | 0.1 | | 18-21 | -- | Australia? | zigzag 10min
|
| 981.012 | 3 | 24h | 24h | + | Radio Star Country Emyvale, IRL 1 KW | slow drifter
|
| 981.018 | 0.5 | | 14- | o | |
|
f=fast drift, p=propagation effects, : interrupted by night break, w=only at warm up/switch on
view offset frequency list & 24h graph at fmscan.org

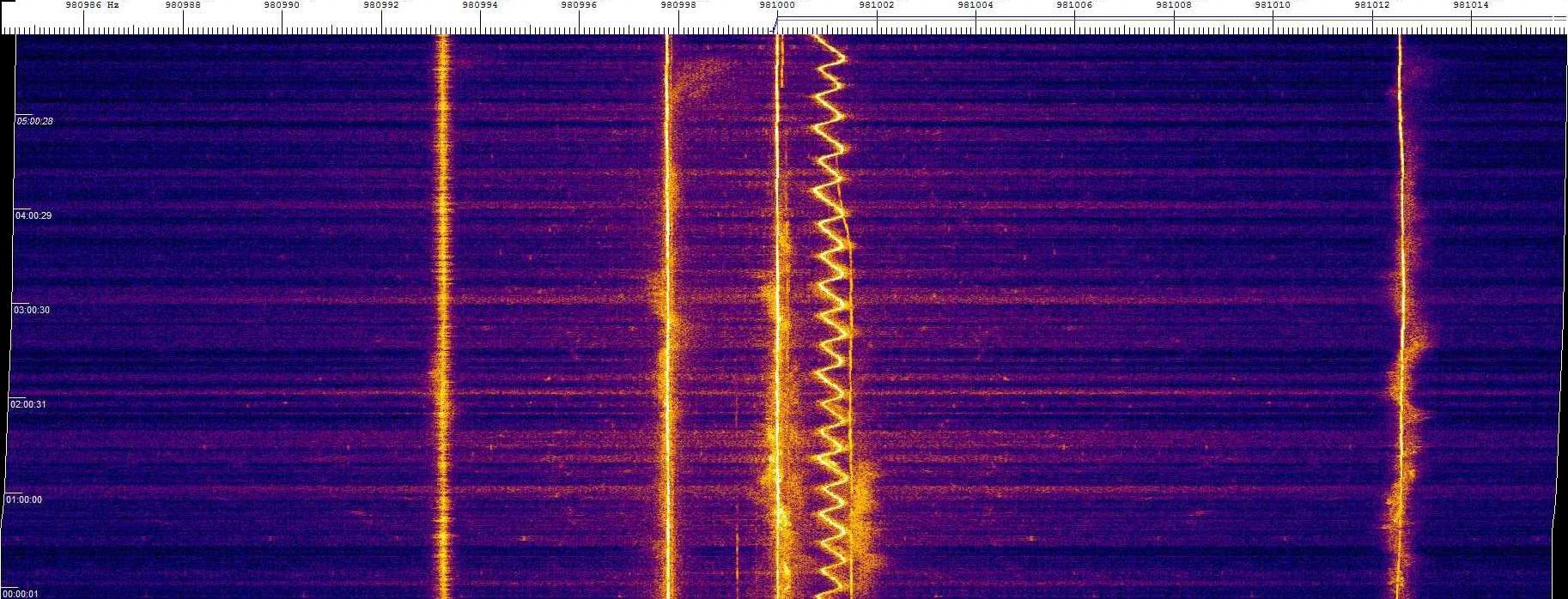

0981khz_170307_00-06z_9843-0157

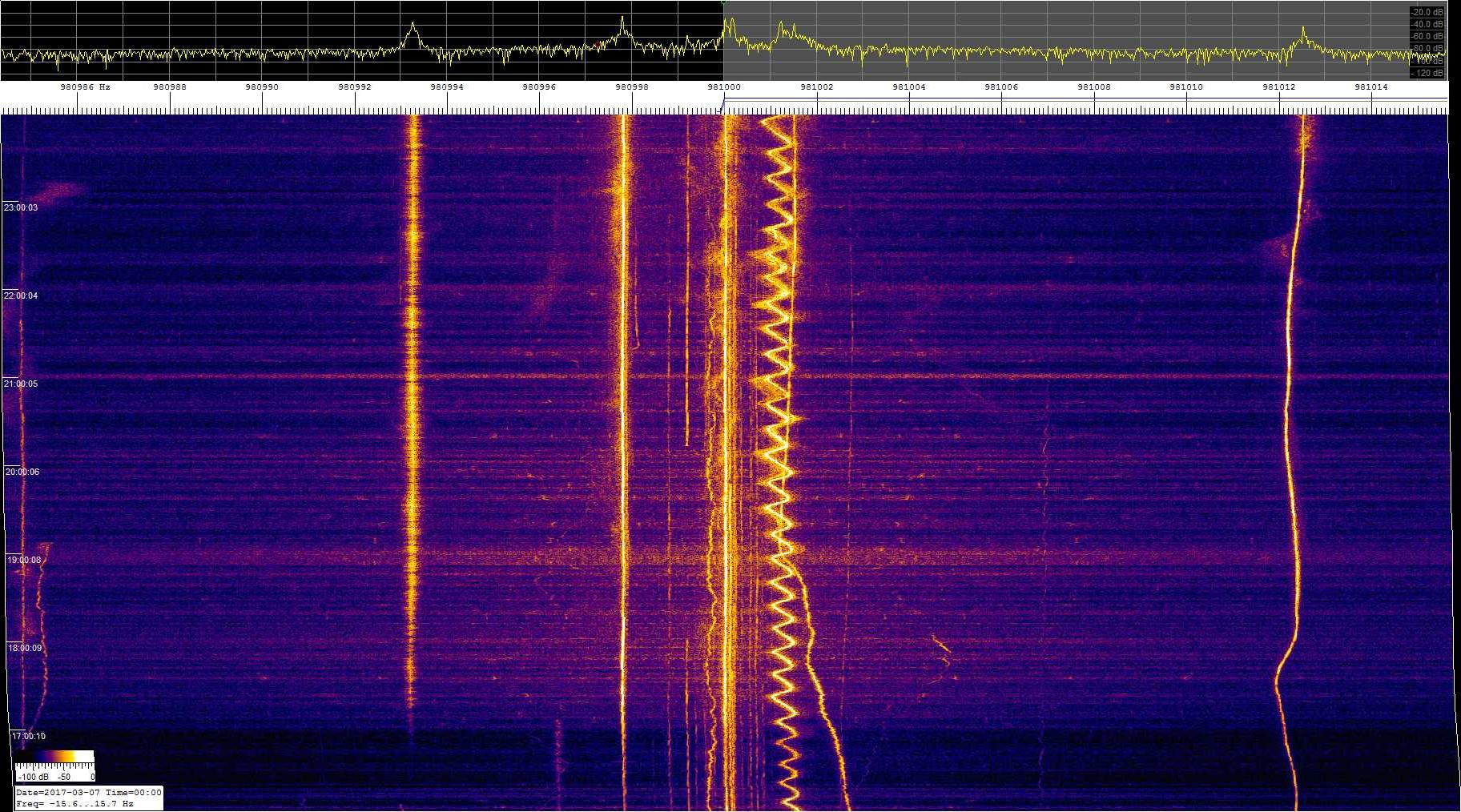

0981khz_170306_16-00z_9843-0157

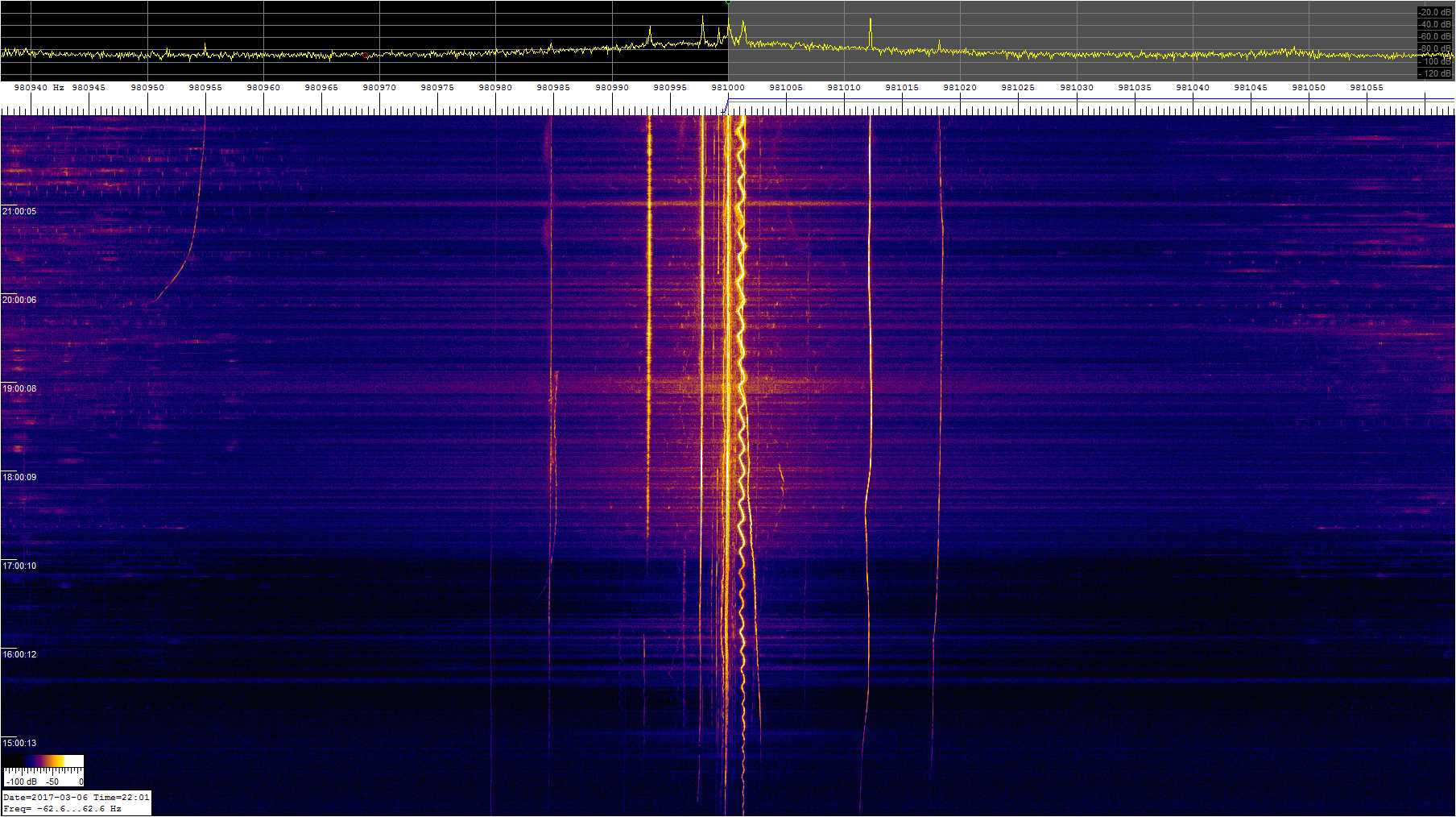

0981khz_170306_14-22z_9373-0627

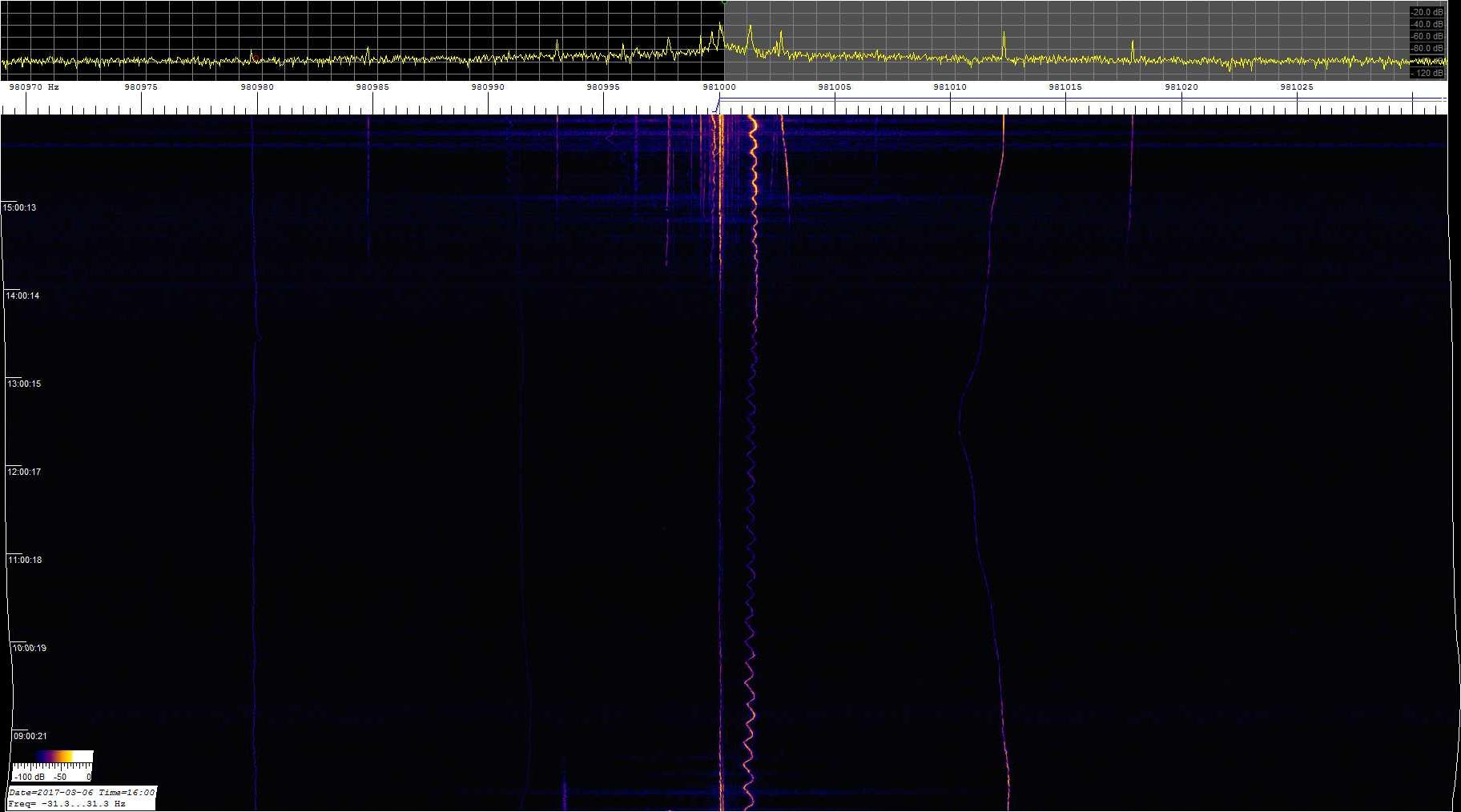

0981khz_170306_08-16z_9686-0314
0981khz_170306_06-08z_9686-0314

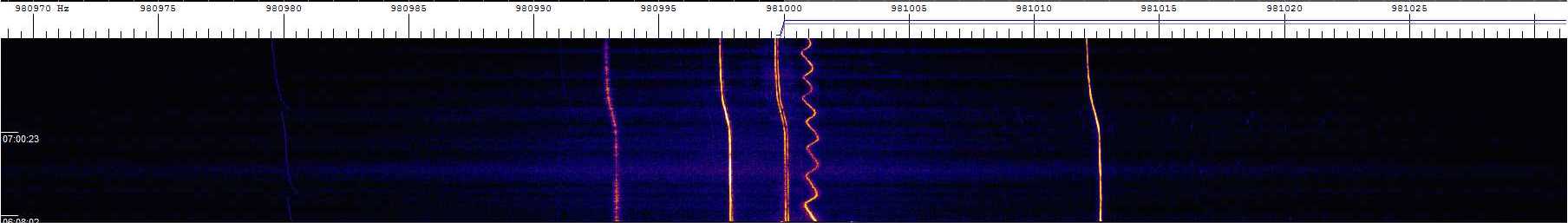

0981khz_170306_06-08z_9686-0313
all screenshots taken with the superb and free Spectrum Lab software
