Radiovibrations - Offset DX
1620 KHz
waterfall diagrams received in Handewitt, Germany on 14/01/2018 , 09/01/2019 , 26/01/2017 , 25/01/2017
by Peer-Axel Kroeske, DL2LBP
Radio Rebelde from Cuba and WDHP from the Virgin Inslands can be heard regularly with audio here. The weak wide carriers from 16-21 UTC could possibly be Australia. The Brisbane Perseus receiver picks up carriers on these. The strong ones are probably pirates, QSOing (dotted) and broadcasting (05-07 UTC). The scale shows frequencies +0.5 Hz. If you move the mouse over the graphic the labels will show the right value.
The clusters of 10W service stations from the USA do not seem to get through.
| KHz | +/- | times | fade | strength | station | remarks
|
|---|
| 1619.9892 | 0.1 | | 2130-0900 | o | WDHP, Virgin Isl | on 1619.9889 a few days later
|
| 1619.9955 | 2.5 | | 2200-0820 | o | Universo FM, ARG? | drifter
|
| 1619.9955 | 0.5 | | 2300-0850 | o | WNRP, FL? | zigzag
|
| 1619.9965 | 0.2 | | 1630-1800 | -- | Australia? | propagation fits to east Asutralia
|
| 1619.9983 | 1 | | 2220-0900 | o | CUB or DOM | mostly stable, CUB often logged on 1619.9987
|
| 1619.9996 | 2 | | 2230-0900 | o | CUB or DOM | sinus drift
|
| 1620.0000 | 0 | | 2300-0900 | - | |
|
| 1620.0005 | 0 | -2140 | | -- | harmonic? AFS? |
|
| 1620.0008 | 0 | | 2200-0900 | o | CUB |
|
| 1620.0021 | 0.2 | | 2240-0840 | o | |
|
| 1620.0031 | 0.2 | | 0000-0830 | -- | KOZN,NE? |
|
| 1620.0045 | 0.2 | | 1700-2100 | -- | Australia? | propagation fits to west Australia
|
f=fast drift, p=propagation effects, : interrupted by night break, w=only at warm up/switch on
view offset frequency list & 24h graph at fmscan.org

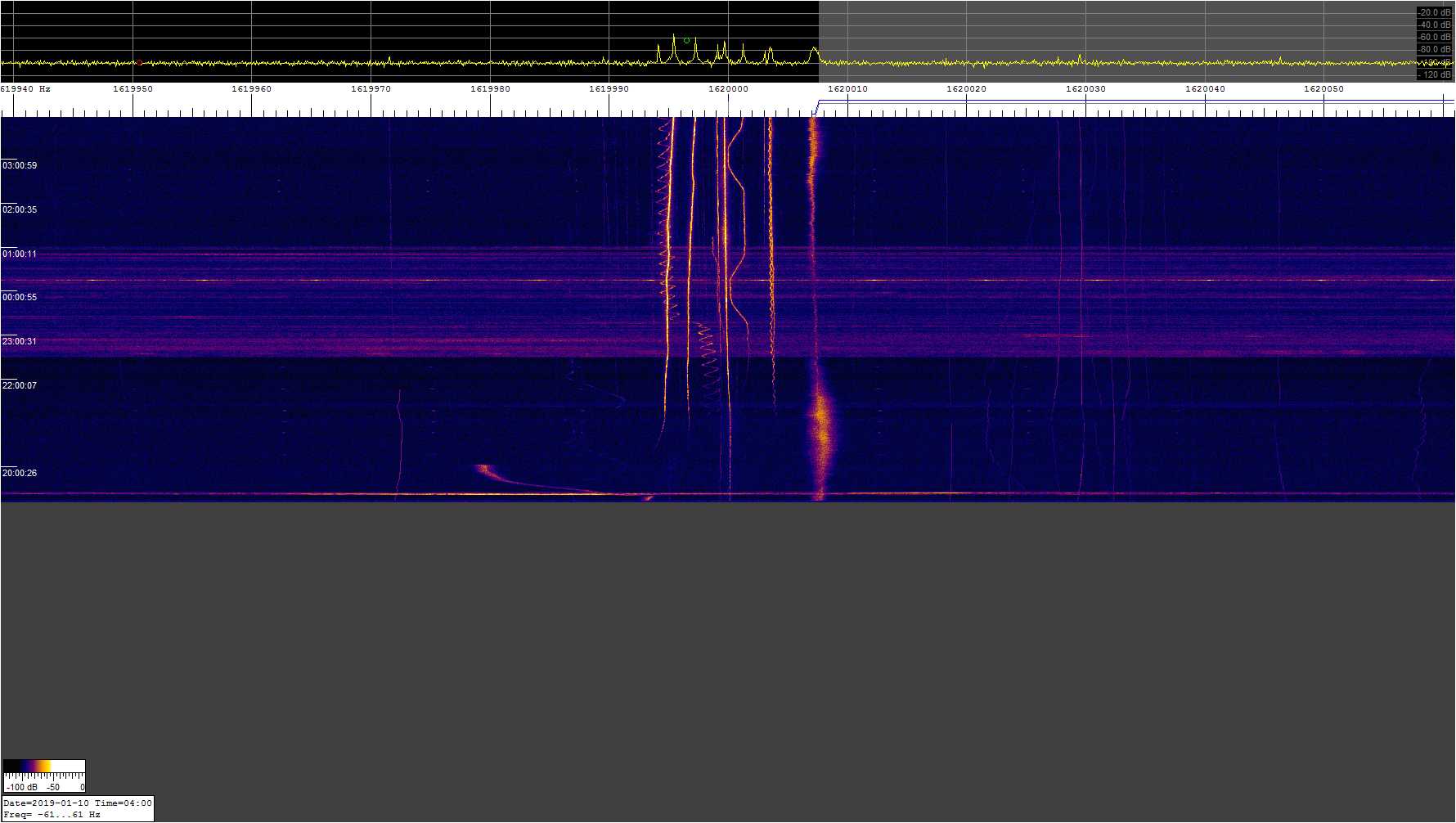

1620khz_190109_1920-0400z_9389-0610

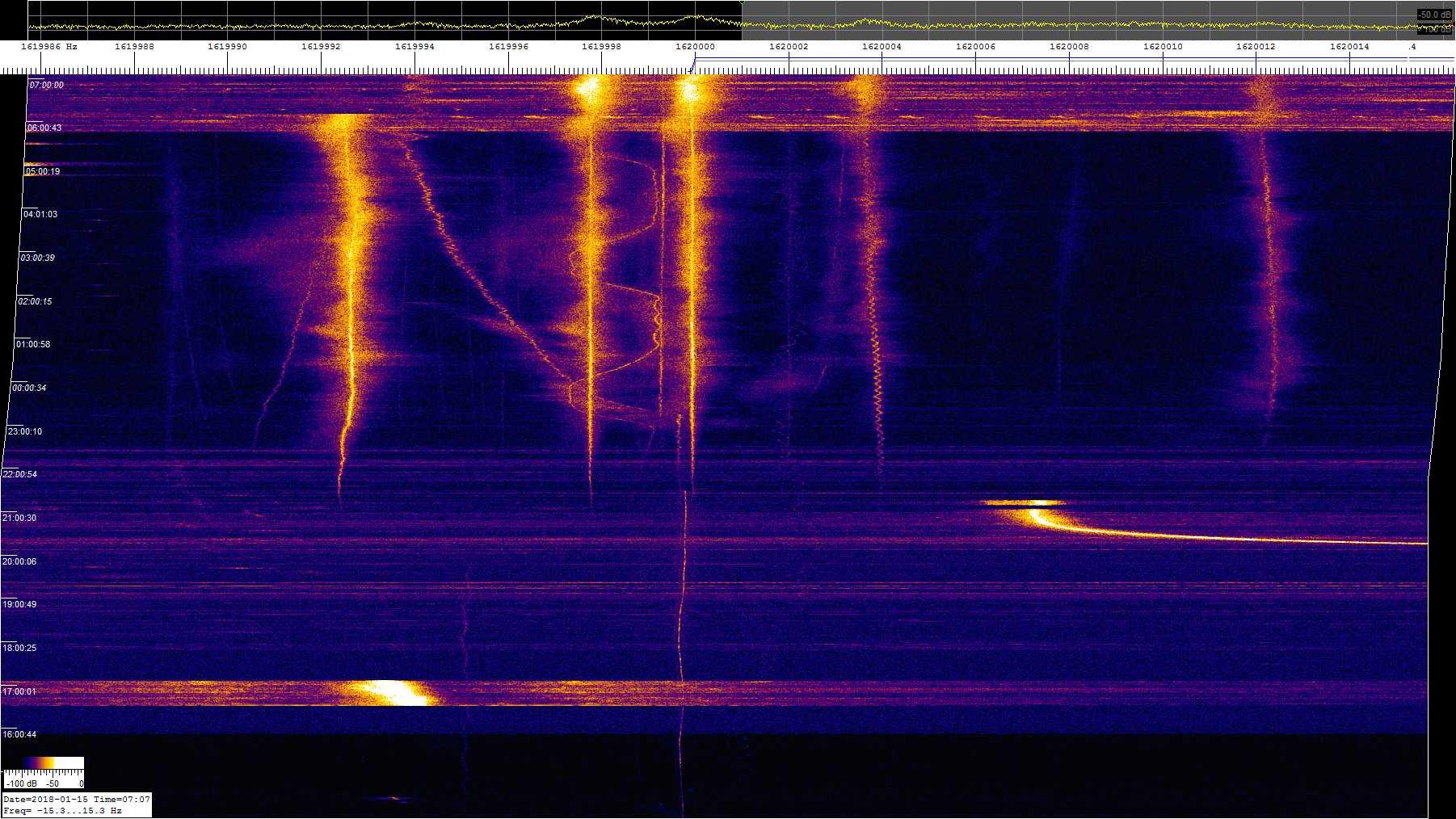

1620khz_180114_14-0707z_9847-0152

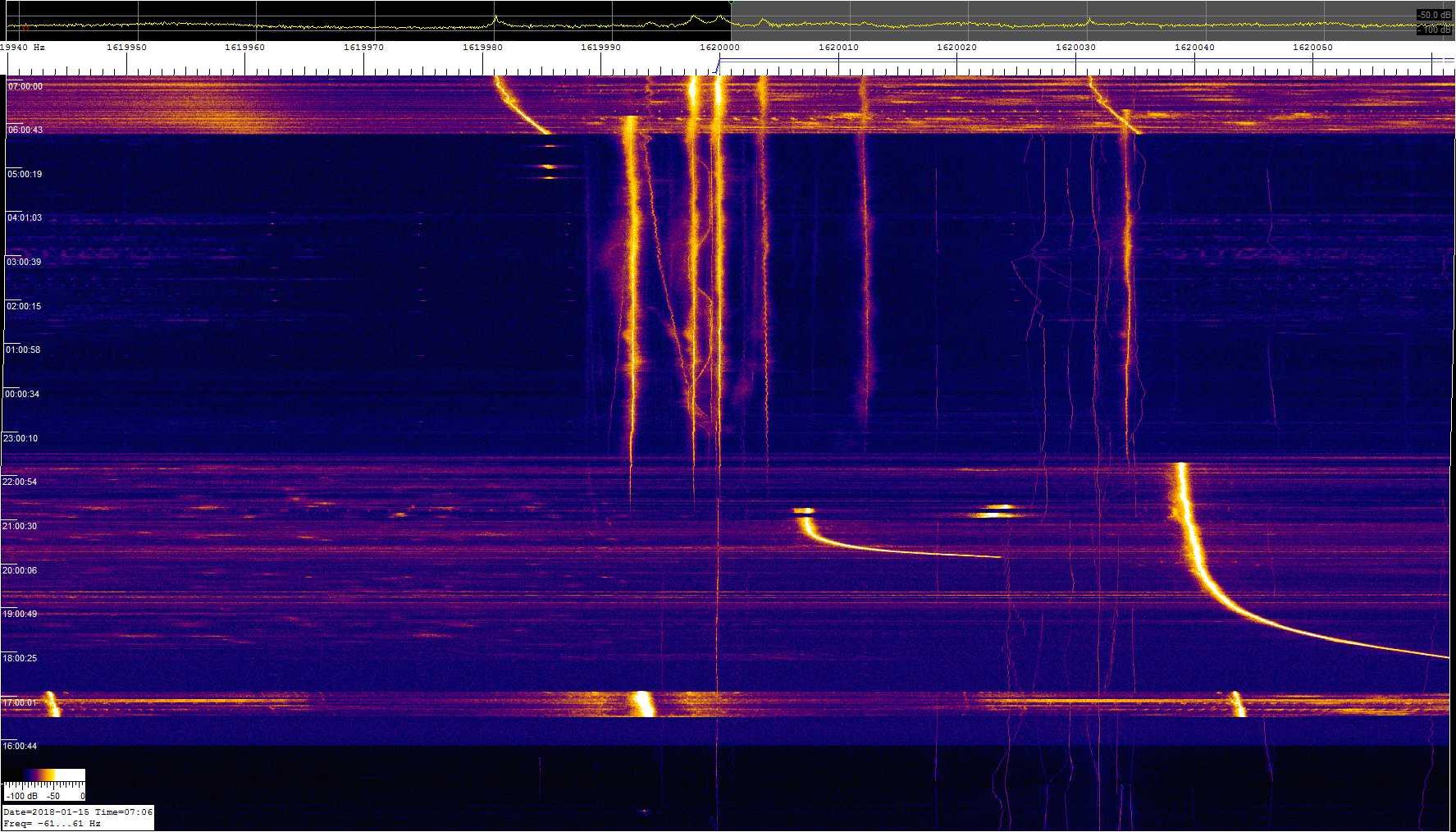

1620khz_180114_14-0707z_9389-0611

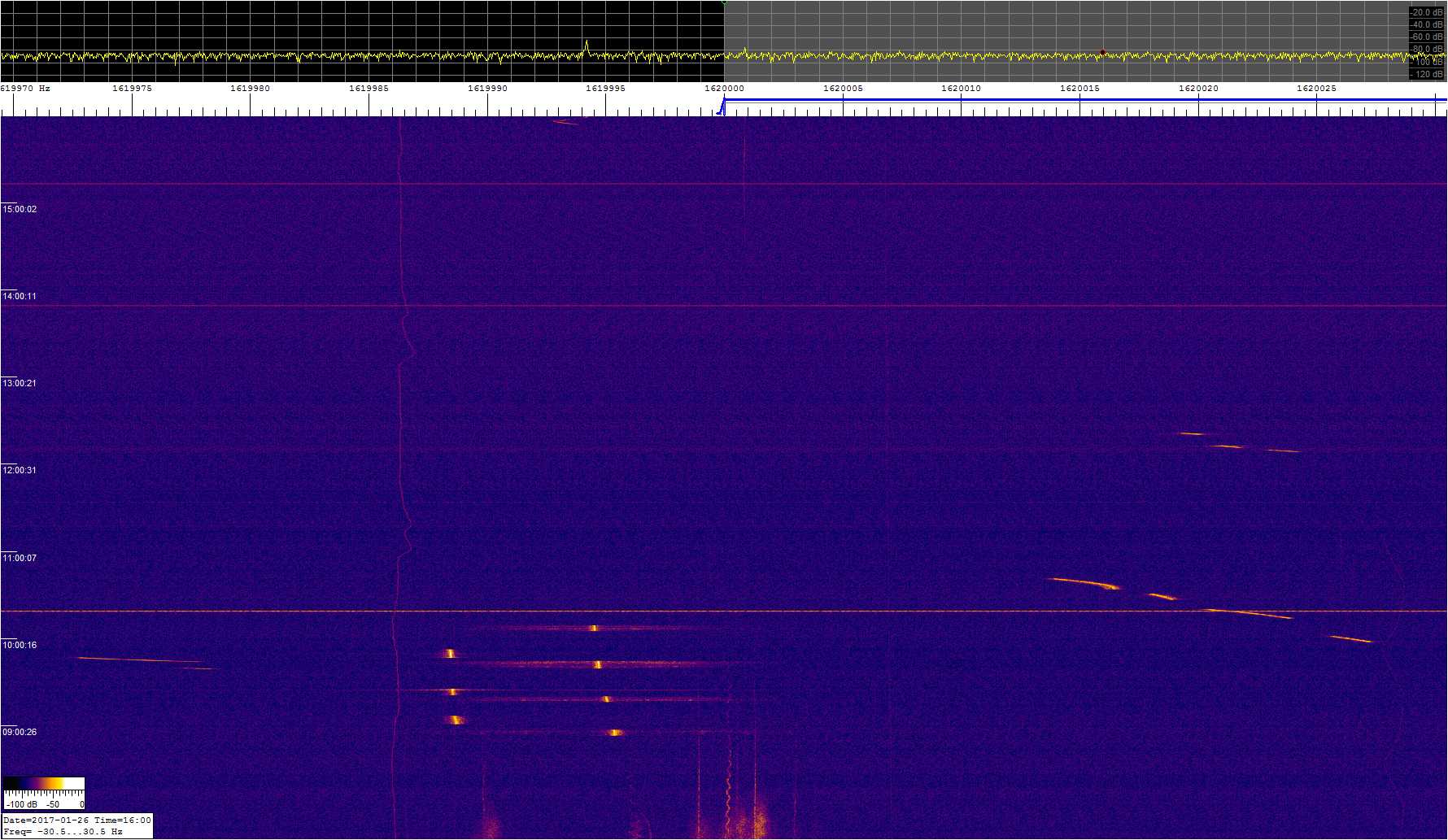

1620khz_170126_08-16z_9689-0300

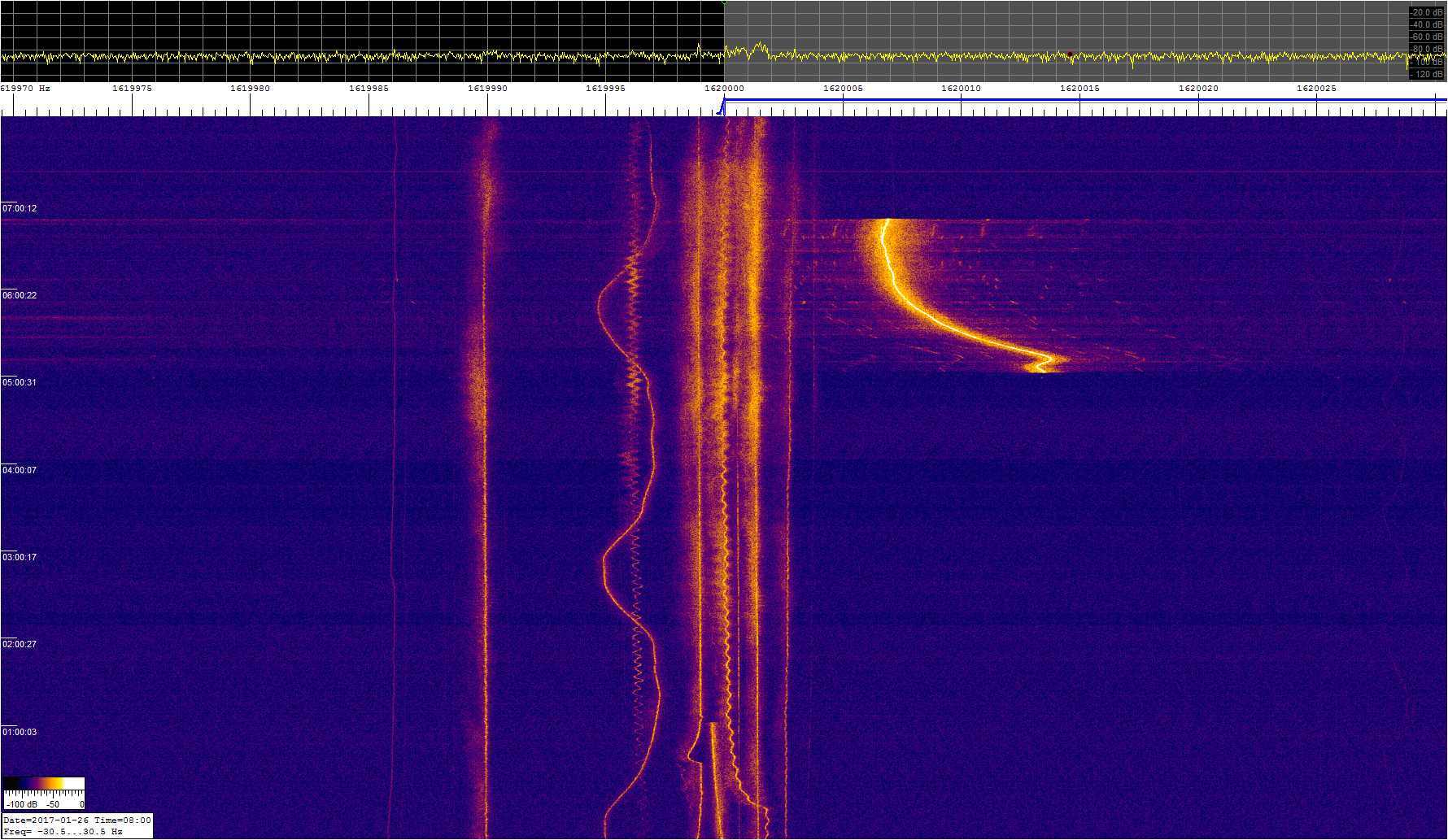

1620khz_170126_00-08z_9689-0300

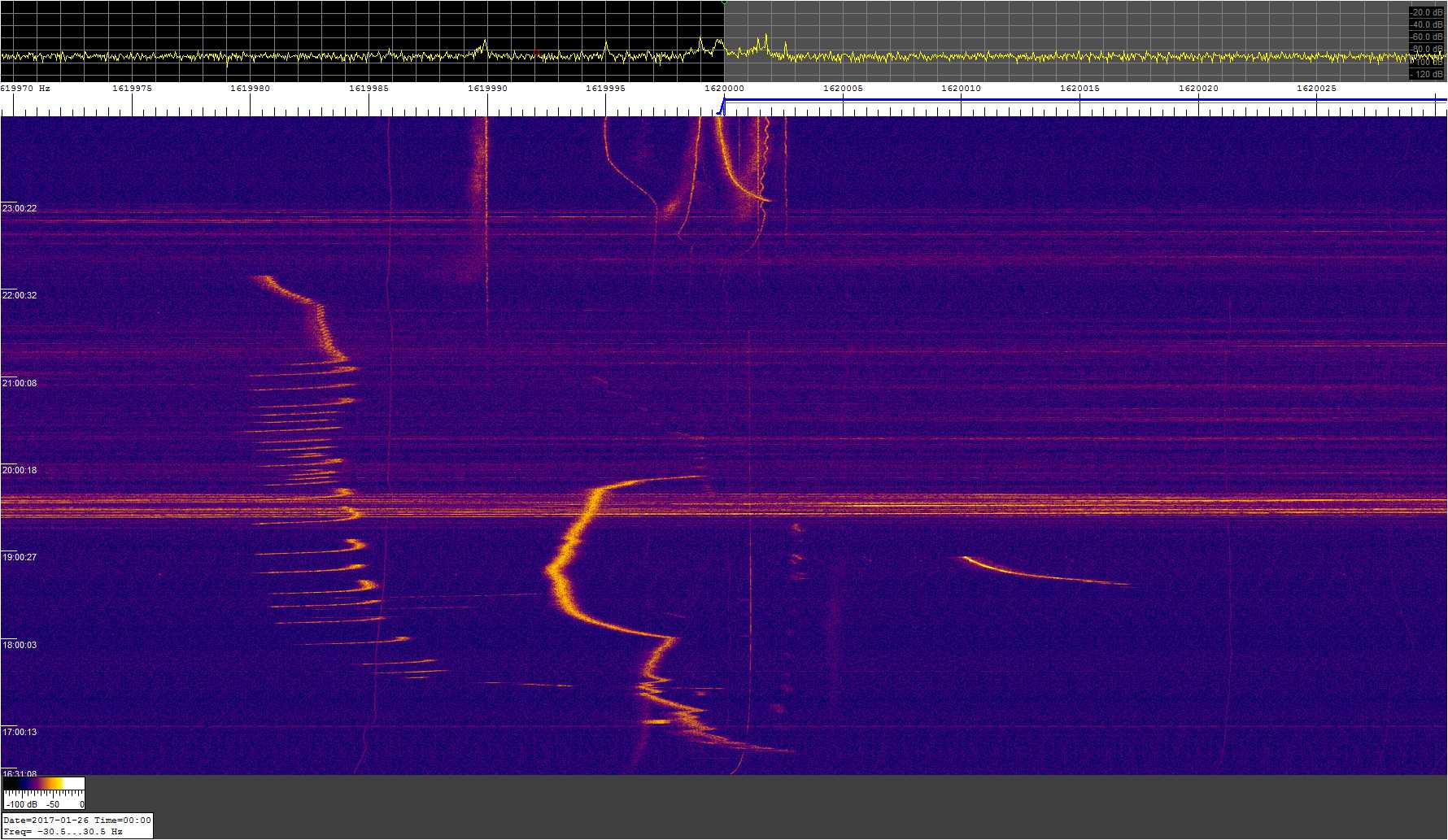

1620khz_170125_16-00z_9689-0300
all screenshots taken with the superb and free Spectrum Lab software
