1584 KHz

waterfall diagrams received in Handewitt, Germany on 06/03/2016

by Peer-Axel Kroeske, DL2LBP Observed during a night with massive propagation effects. You can see lots of dopplers affecting many signals simultaneously. About 17 individual carriers visible, probably 4 x UK (some on 1584.0000), 3 x POL (if active), ROU

KHz	+/-	times	fade	strength	station

1583.973	0.3	0345-2200	16-06	o
1583.974	0.3		14-05	+	IRN Radio Semnan
1584.0000	0	24h		+	BBC Hereford & Worcester
1584.0061	0	24h		+	HOL Radio Paradijs
1584.027	1		2250-		-

f=fast drift, p=propagation effects, : interrupted by night break, w=only at warm up/switch on view offset frequency list & 24h graph at fmscan.org

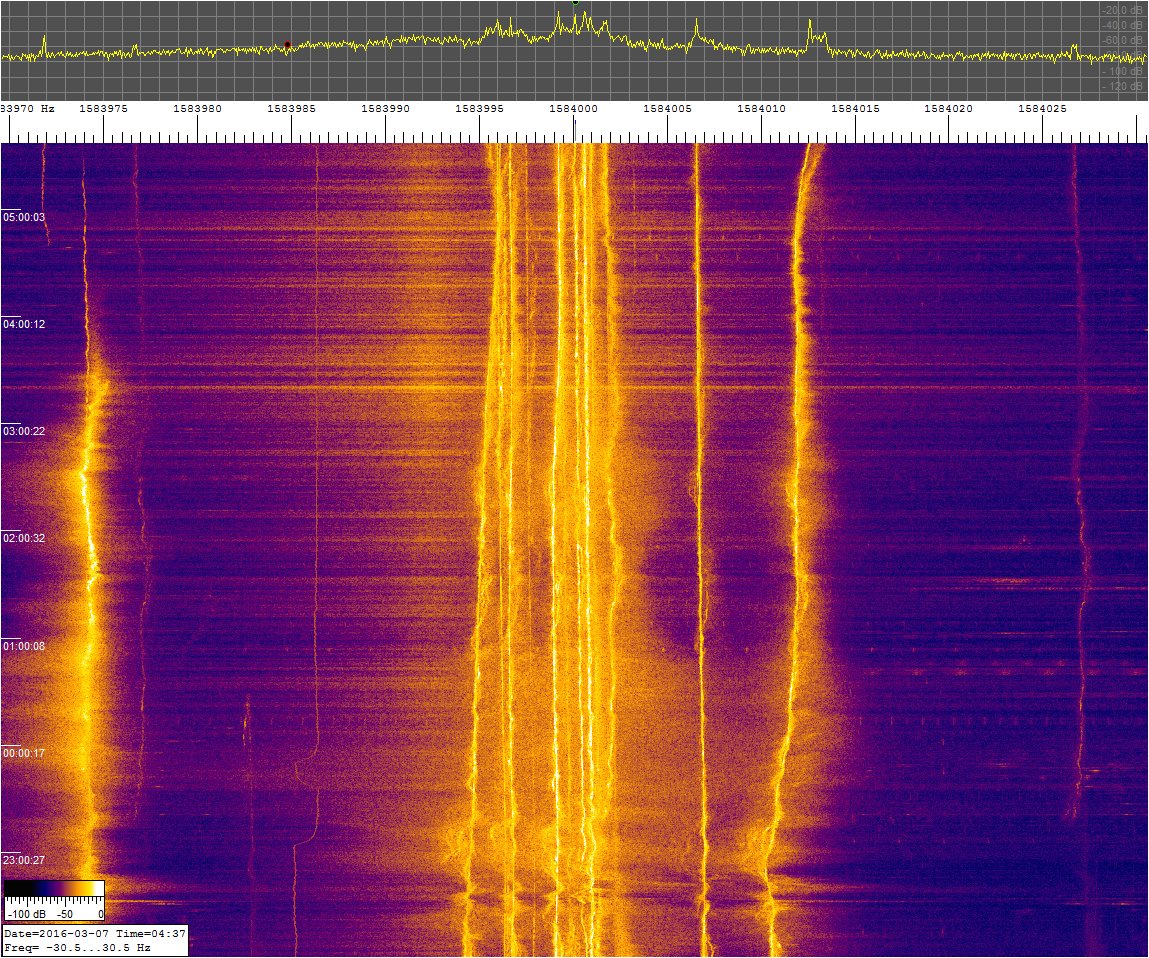

1584khz_160306_21-05z_mez_9692-0302

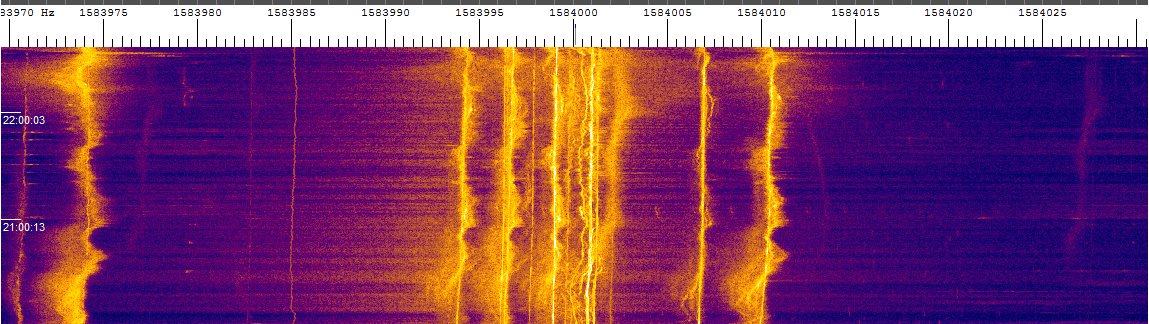

1584khz_160306_19-21z_mez_9692-0302

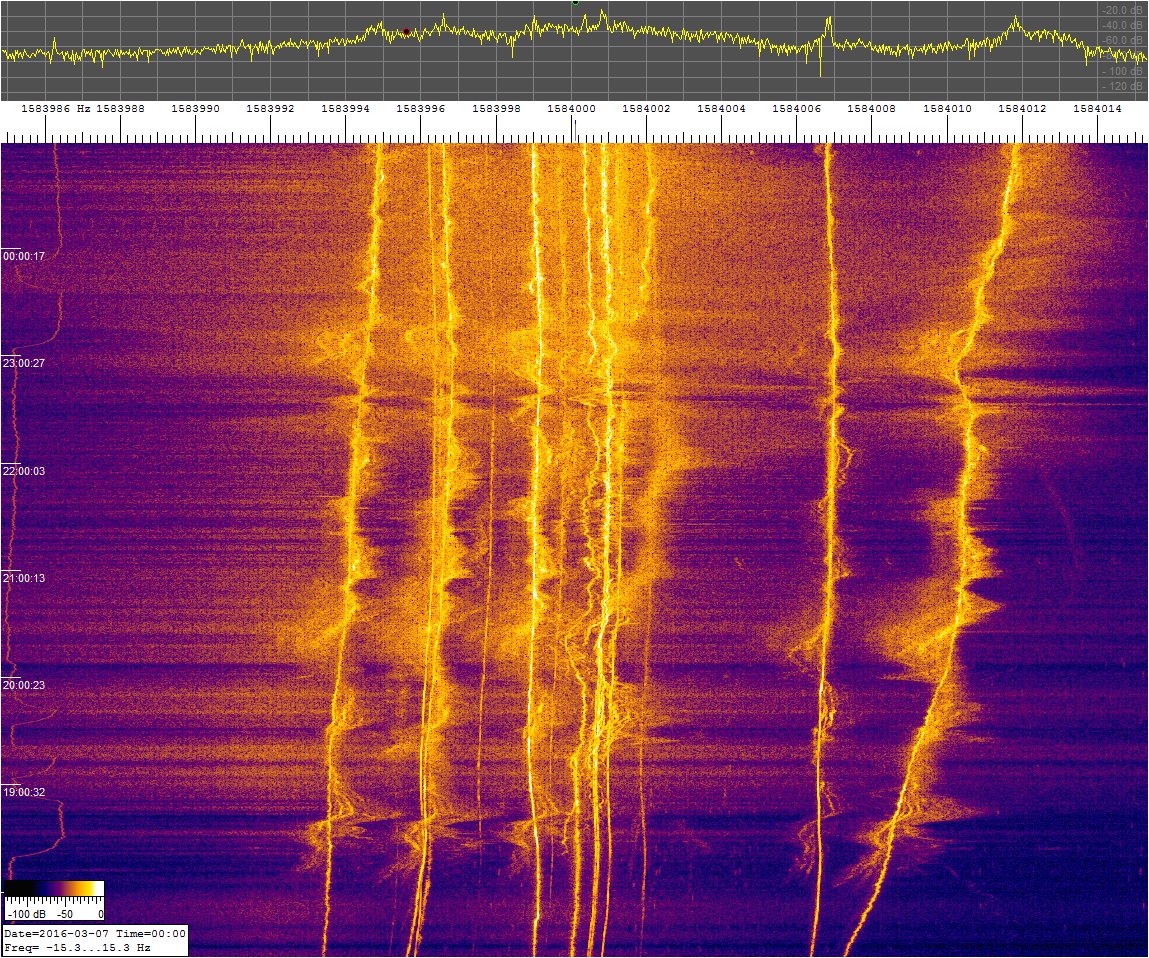

1584khz_160306_16-00z_mez_9844-0150

1584khz_160306_10-18z_mez_9696-0306

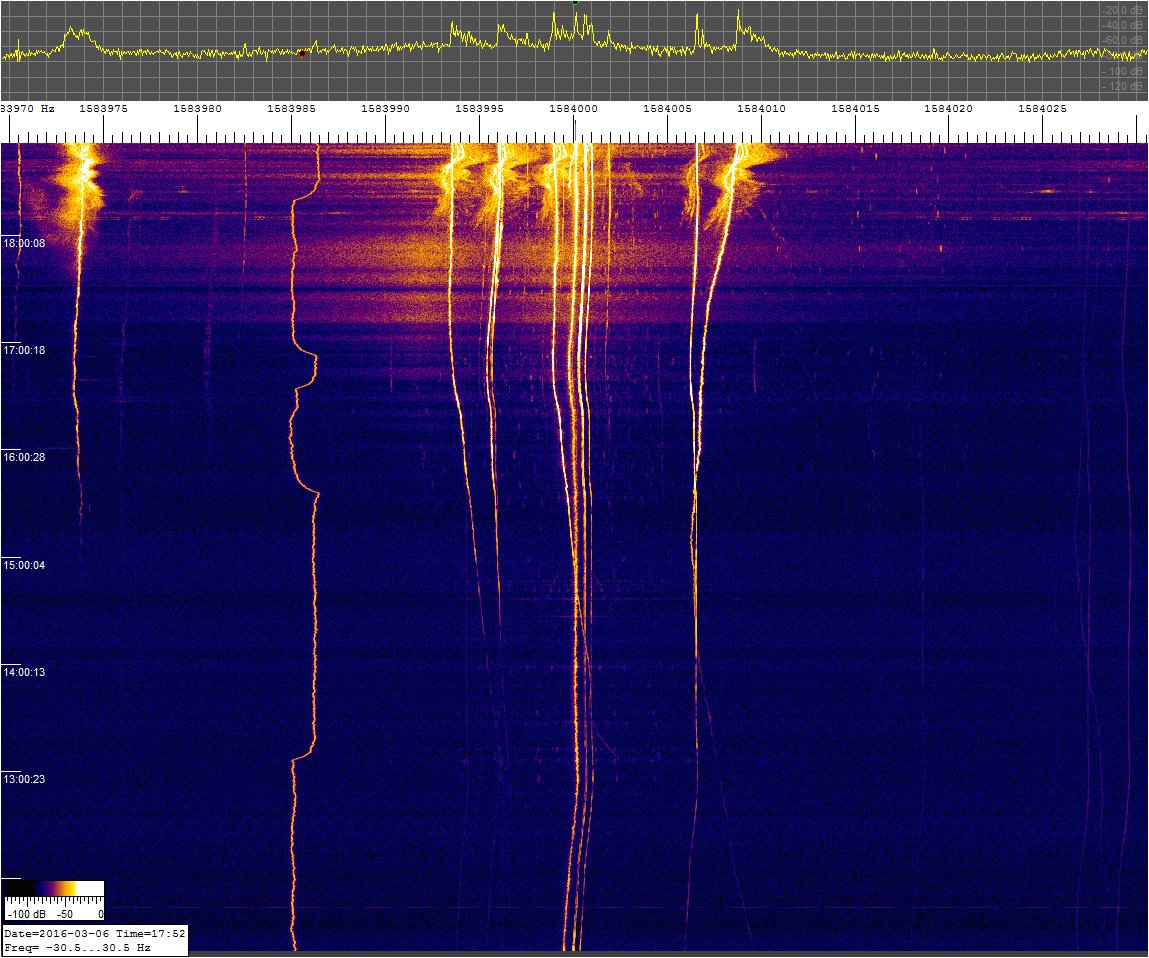

1584khz_160306_10-18z_mez_9692-0302

1584khz-midsize

all screenshots taken with the superb and free Spectrum Lab software
