1314 KHz

waterfall diagrams received in Handewitt, Germany on 20/02/2017 , 19/02/2017

by Peer-Axel Kroeske, DL2LBP

KHz	+/- Hz	times	fade	strength	station	remarks
1313.98	10	24h	14-06	+	R.Ardabil, IRN, 50 KW	hopping 2310 and 0340
1313.9989	0.1	24h	16-0930	o	RNE, Spain	one of three: Salamanca, Cuenca, Tarragona where are the others?
1314.0002	0	0350-2005	1330-0930	+	Ant Satelor, Constanta, 50 KW
1314.00085	0	24h	1330-0930	+	SRR Otlenia-Craiova, 15 KW
1314.0018	0	0355-2000	24h	+	Ant Satelor, Timisoara, 25 KW

f=fast drift, p=propagation effects, : interrupted by night break, w=only at warm up/switch on view offset frequency list & 24h graph at fmscan.org

1314khz_170220_16-24z_9377-0629

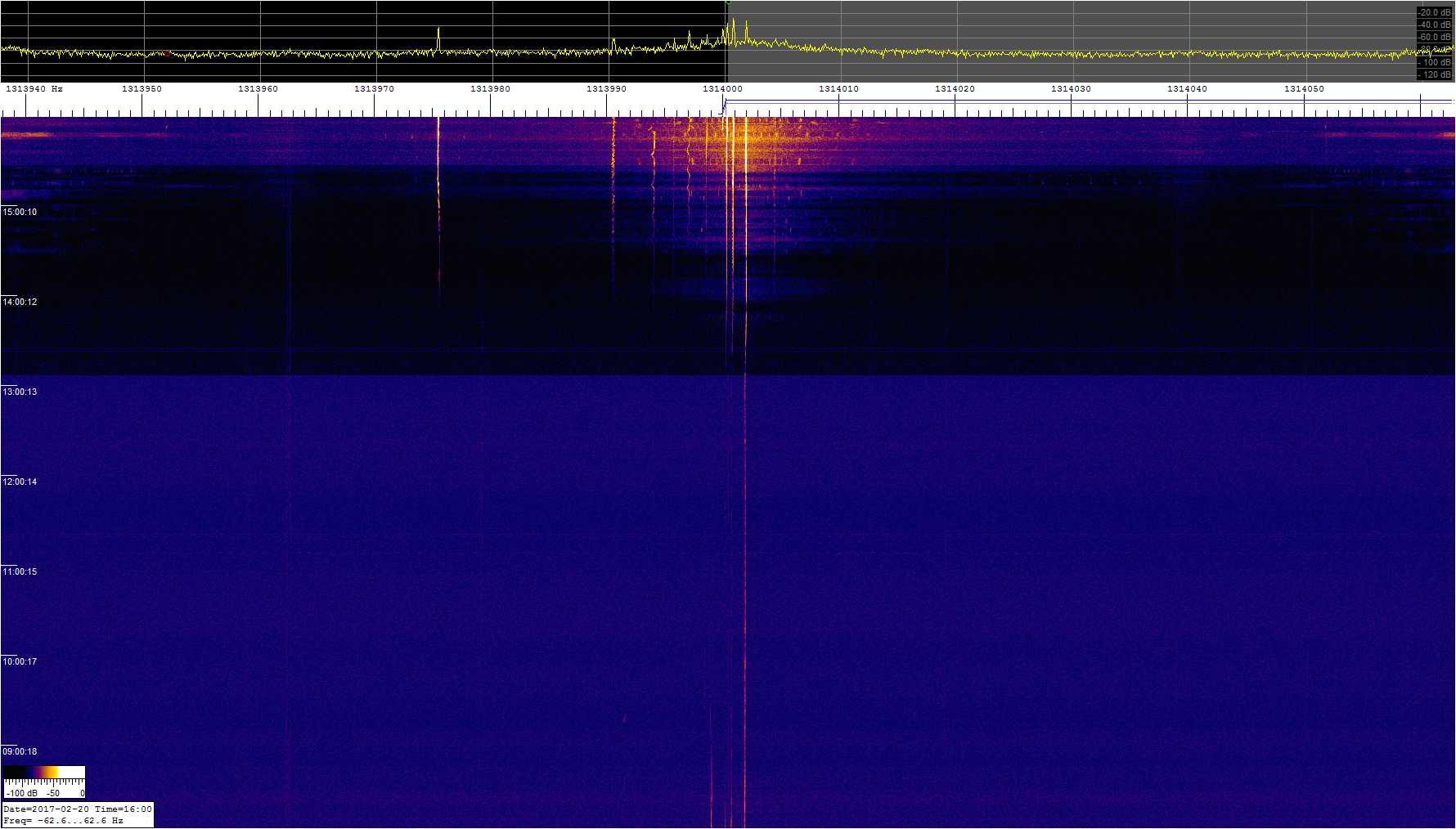

1314khz_170220_08-16z_9377-0629

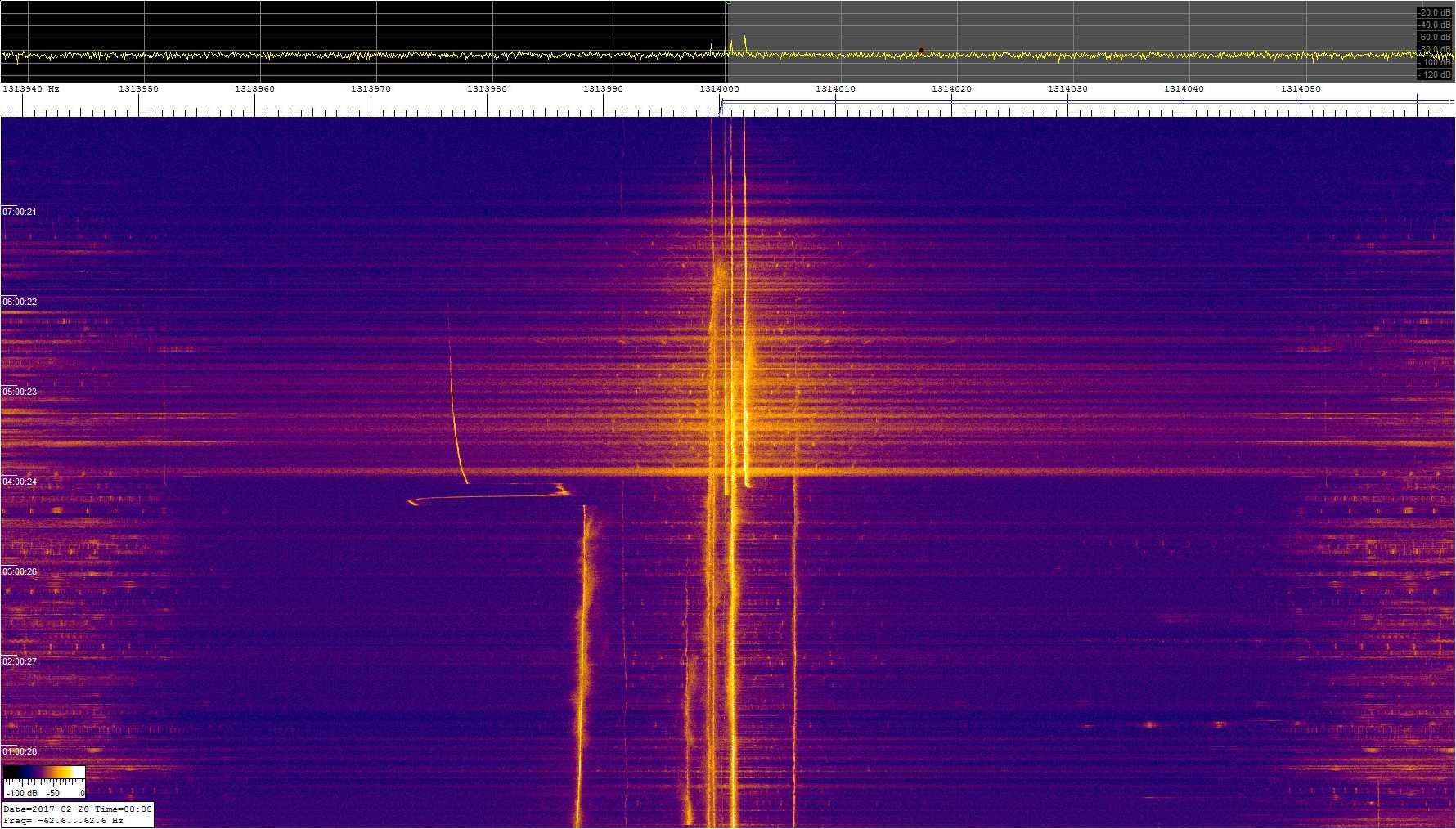

1314khz_170220_00-08z_9377-0629

1314khz_170219_1950-0000z_9377-0627

all screenshots taken with the superb and free Spectrum Lab software
